Need help placing FR cables in Intel 6300 card slots

[replica9906]

Hi,

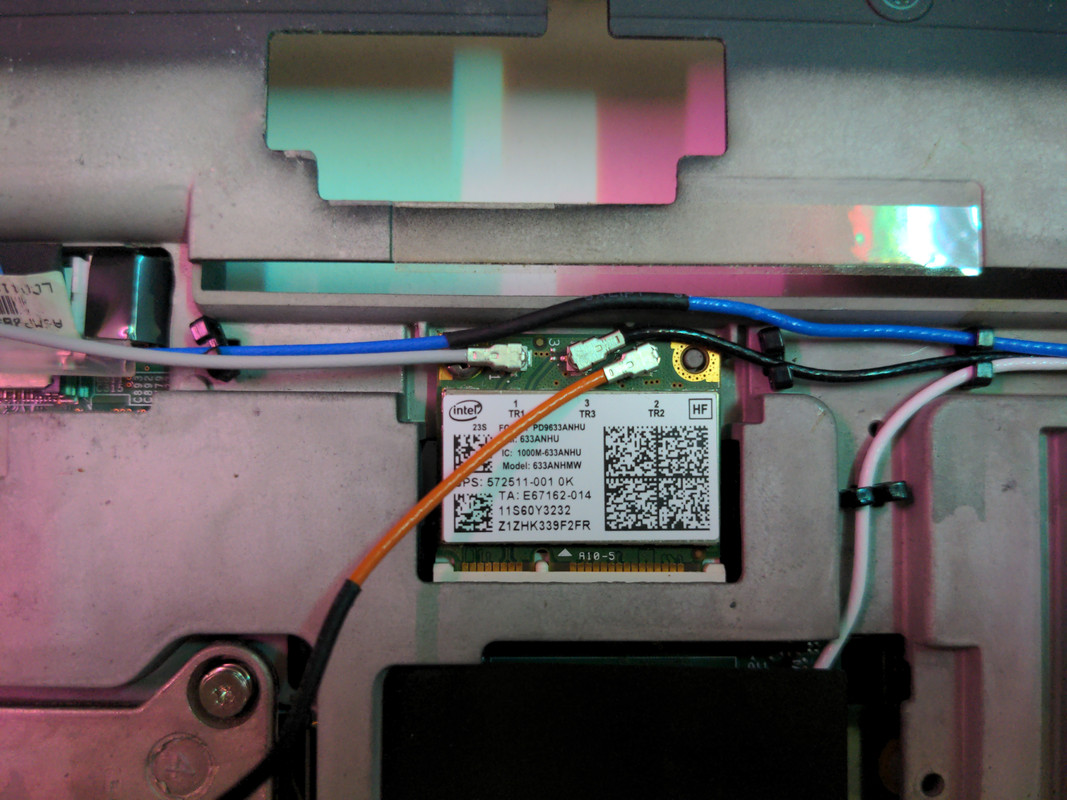

I was disassembling my T430 laptop and did not capture what FR cable is plugged into which TR slot on the Intel 6300 wireless card. With some research and AI help I have come to the following solution, but it's probably wrong.


https://i.postimg.cc/5yLXVgx0/2025-07-2 ... 35-571.jpg

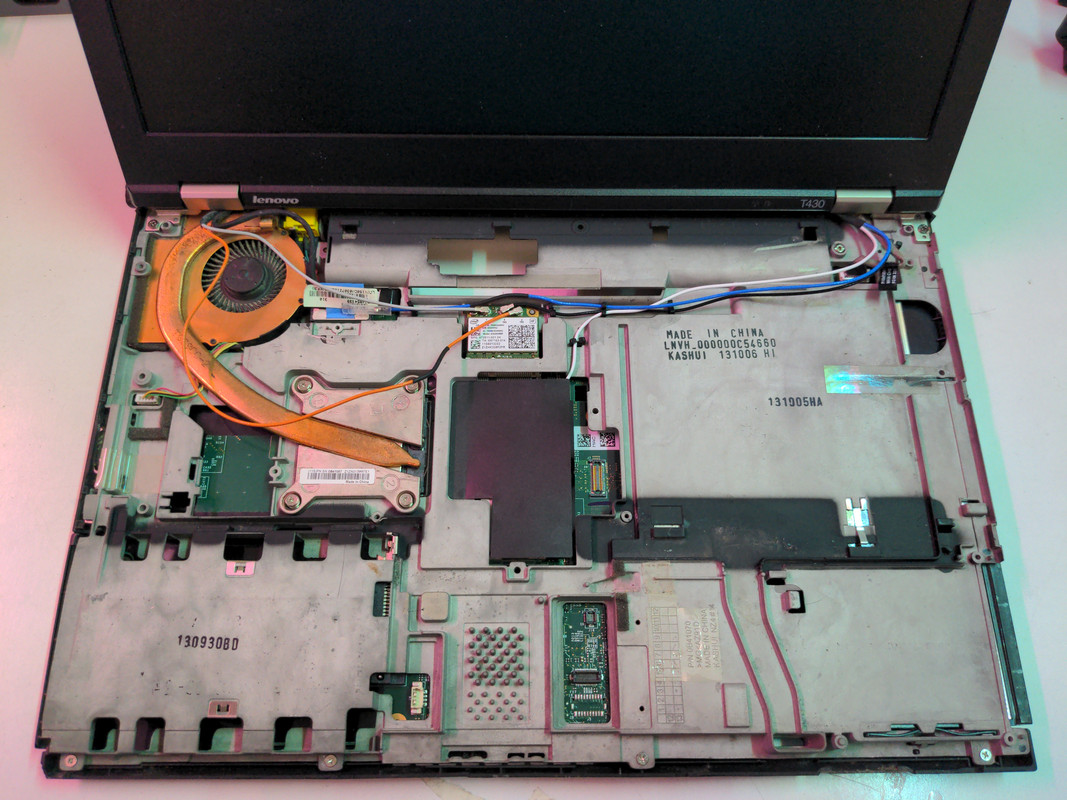

Please let me know which colour should go to which slot, and note that, from left to right, they are TR1, TR3, TR2 so it's not natural counting.

https://i.postimg.cc/HLnjxdpF/2025-07-2 ... 29-300.jpg

FORUM warning:
Picture(s) WAY too big, tags removed.
Please read the Forum Rules, especially Section 5: viewtopic.php?f=16&t=14339

[axur-delmeria]

With some research and AI help

First off: ask people before consulting AI.

Second: your embedded photos are too large. Please convert them into links.

but it's probably wrong.

Yes, you're wrong. Orange wire is for the WWAN/3G/Cellular antenna, not WiFi. You only got 1 correct (gray at TR1)-- so much for AI

Black is TR2 (rightmost), and white at TR3 (center).

Three: take photos as you disassemble. Or better yet, consult the T430 Hardware Maintenance Manual.

[replica9906]

With some research and AI help

First off: ask people before consulting AI.

Second: your embedded photos are too large. Please convert them into links.

but it's probably wrong.

Yes, you're wrong. Orange wire is for the WWAN/3G/Cellular antenna, not WiFi. You only got 1 correct (gray at TR1)-- so much for AI

Black is TR2 (rightmost), and white at TR3 (center).

Three: take photos as you disassemble. Or better yet, consult the T430 Hardware Maintenance Manual.

Appreciate your help and advice!
